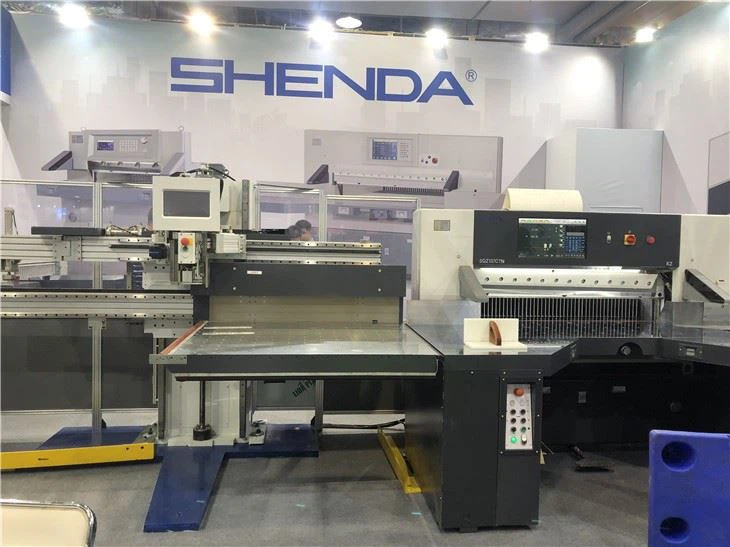

THE PICTURE OF THE CUTTING LINE
MAIN SPECIFICATION
Model | U-3 |
Application for size (max&min) | 1200*1640mm (500*500) |
Loading capacity (max) | 500 kg |
Pile height (max) | 1500 mm |
The max height of loading paper(for one time) | 165 mm |
The min height of loading paper(for one time) | 70mm |
Minimum height from the ground | 140mm |
Loading time | 25s |
Space for putting pallet (W*D) | 4700*2350 mm |
176 | |
Total power | 4.8kw |
Net weight | 2300kg |
Packing Size | 2900*2550*2500mm |
Model | F-3 |
Application for size (max&min) | 1250*1650mm (600*850 mm) |
The max pile height | 1500mm |
The max height of taking paper(for one time) | 165mm |
The min height of taking paper(for one time) | 50mm |
Minimum height from the ground | 140mm |
Paper weight for one time (max) | 500kg |
Taking paper time | 25S |
176 | |
Total power | 5Kw |
Net weight | 1800kg |
Packing Size | 3530*2690*2500mm |
MAIN PART:
Paper cutter SQZ-176CTN KL
Paper Loader F-3
Paper Unloder U-3
SHENDA paper cutting line system includes intelligent loader,computerized hydraulic paper cutting machine and intelligent automatic paper unloading machine.The machine can automatically Complete the Loading and unloading stack,clean up,transit, palletizing for various types of paper. With high productivity, low labor intensity, short auxiliary work time, reduce production costs. It can provide the design and manufacture for cutting line with a variety of specifications an different combinations.
Optimize the Product Process,High Efficiency Working Ability
Short the cutting time,Improve working efficiency,Save the product cost
FAQ:
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Beiyu Industrial Zone, Ruian, Zhejiang province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia,etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
