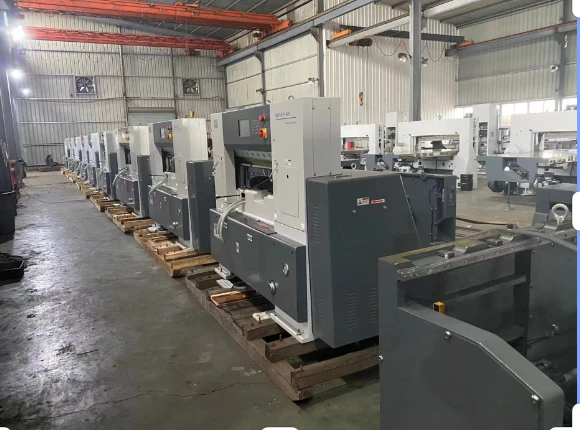

Single Hydraulic Paper Cutting Machine

Product Introduction：

Single hydraulic paper cutter is a professional paper processing equipment that drives the paper pressing and cutting mechanism through a hydraulic system. It is often used to cut text from various materials such as rice paper, leather, and paper because of its fast processing speed. Therefore, it is widely used in libraries, printing and publishing.
The hydraulic paper pressing method of the hydraulic paper cutting machine can more accurately ensure the equal length tolerance accuracy of the cut material, especially when cutting high-density cut materials, the difference is particularly obvious.







The functions of a single hydraulic paper cutter：

Material cutting: Suitable for batch cutting of paper (such as rice paper, printing paper), leather and other materials, stable cutting is achieved by driving the blade through a hydraulic system

Application scenarios: Suitable for printing factories, fast printing shops, and other scenarios, supporting continuous operations. Some models are equipped with automatic waste edge cleaning and negative pressure dust removal systems to improve efficiency and environmental friendliness.High end models support high-intensity continuous operations, meeting the needs of large-scale production



Technical features：

Hydraulic Drive:Hydraulic Drive: Adopting variable frequency hydraulic technology to ensure stable and adjustable cutting pressure, especially suitable for processing ultra thick paper

Other functions：equipped with dual grip verification, grating sensor, and infrared module (response time<0.2 seconds), effectively preventing operational risks

Intelligent adjustment: Some models support external fine adjustment technology for blades, quickly compensating for blade wear and maintaining cutting accuracy

‌

Through the synergistic effect of hydraulic and blade, the single hydraulic paper cutter achieves efficient and safe cutting effects, and is widely used in the fields of printing, packaging, and handmade production





MAIN SPECIFICATION:

MODEL	SQZ-92CT KD
Cutting width(mm)	920
Max.cutting height(mm) (Without auxiliary panel )	120
Max.cutting length(mm)	920
Main motor power(kw)	3
Net weight(kg)	2400
Width with sideway(mm)	2120
Without sideway(mm)	1980
Machine lenght	2050
Machine height	1560
Front table length(mm)	690
Table height(mm)	880
Clamp pressure min(dan/bs)	150
Max(dan/bs)	3500
Knife thickness(mm)	12.7
Grinding reserve(mm)	30
Without false clamp(mm)	25
With false clamp(mm)	90
Cutting speed(mm)	45
Voltage(three-phase)(v)	361-339
Packing size(L*W*H)(mm)	2295*1410*1730



THE SYSTEM OF COMPUTER:

1.The displaying panel use 10.4 inch, you can adjust the color by yourself.

2.They have the high quality colors(25600), their storage can reach 170 groups, every group have 250 cut, Its storage time can reach 300,000 hours.

3.The multi-language operating interface, such as Chinese,English,Russia...

4.It has luminous shortcut key so as to ensure the high stability.

THE APPARATUS CONTROLLED SYSTEM:

1.Adopts Switzerland ABB, German MULLER.

2.Servo motor is from CHINA dongling .

3.Air pump is from GELING

THE PAPER PUSHER CONTROLLED SYSTEM:

1.Roller ball lead screw

2.Double rail guide way

THE HYDRAULIC SYSTEM:

1.Adjustable-pressure single-hydraulic system(paper pressing is controlled by hydraumatic

THE SAFETY PROTECTED SYSTEM:

1.Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.

2. Blade-Replacement Device with safety and convenience.

3. Air cushion and chromeplating platform of photoelectricity protective device.

4. Underlay cutter frame.

5. The closed paper pusher frame.

6. Machine lock, safety bolting, the safety button and light grid.

7.The driving cutting part uses worm.

THE ACCESSORY WITH MACHINE:

1.Tool box: 1 set

2.Manual book

3.Operational CD

4.Guarantee sheet(details in contract
